Artikelomschrijving

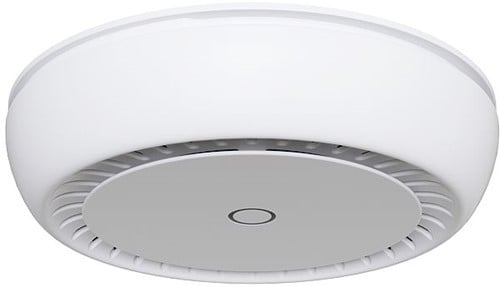

cAP XL ac



The ceiling AP on steroids! The bestseller cAP is back – juiced up and stronger than ever. Compared to the previous cAP models, the improved high-gain antenna increases the covered area by up to 100%!



Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.



The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!



The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.



Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.


Specificaties

MerkMikroTik
CategorieAccess Points
EAN Code4752224007278
ArtikelcodeRBCAPGI-5ACD2ND-XL
VerpakkingStuk(s)
2,4 GHzJa
5 GHzJa
6 GHz (Wi-Fi 6E of Wi-Fi 7)Nee
Maximale overdrachtssnelheid van gegevens867 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)300 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)867 Mbit/s
Frequentieband2 - 5.5 GHz
NetwerkstandaardIEEE 802.3af, IEEE 802.3at
Zendvermogen (CE)26 dBm
Aantal Ethernet LAN (RJ-45)-poorten2
Aansluiting voor netstroomadapterJa
PlaatsingPlafond, Muur
Soort antenneIntern
Breedte191 mm
Hoogte42 mm
snelheid Ethernet-poort10,100,1000 Mbit/s
DC voltage bereik24 V
Stroom1.2 A
Bekabelingstechnologie10/100/1000Base-T(X)
Stroomverbruik (typisch)11 W
Certificaten van nalevingCE, Federal Communications Commission (FCC), RoHS
Type Power over Ethernet (PoE) ondersteuntPassive PoE
Inclusief besturingssysteemRouterOS
AC-ingangsspanning17 - 57 V
Vermogensverbruik (max)24 W
Intern geheugen16 MB
Flash memory128 MB
Draadloze technologieWi-Fi 5
WPS Push Button SecurityJa
Draadloos LAN data-overdrachtsnelheid (max)867 Mbit/s
Garantieperiode5 jaar
ProcessormodelIPQ4018
Mean time between failures (MTBF)100000 uur
Type processorJa
Frequentie van processor716 MHz
ChipsetIPQ-4018
BeveiligingseigenschappenIPsec hardware acceleration
Termijn voor beveiligingsupdatesIPsec hardware acceleration
