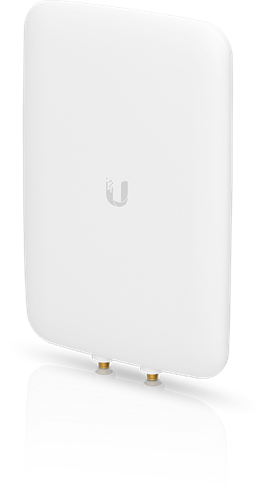

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping.
Antenna Features: Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
Weather-Resistant Enclosure: Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
Versatile Mounting: The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
Compatibility: The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
Specifications
- RF connectors: (2) RSMA female
- Purpose: Outdoor
- Material: UV stabilized plastic
- Dimensions [mm]: 33x128x201
- Cross-Pol Isolation [dB]: 25
- MIMO, SISO: 2 x 2
- VSWR: < 2,0
- Wireless frequency [GHz]: 2.4 + 5 (dual band)
- Beam angle - H. pol. [angle]: 90
- Beam angle - V. pol. [angle]: 45
- Type of antenna: Sector, Directional
- Antenna gain [dBi]: 10, 15
