VIGI NVR1004H-4P 4 Channel PoE+ Network Video

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
Toevoegen aan favorieten
  • Artikelomschrijving & specificaties
  • Documenten
  • Veel gestelde vragen

Barcode

Artikelomschrijving

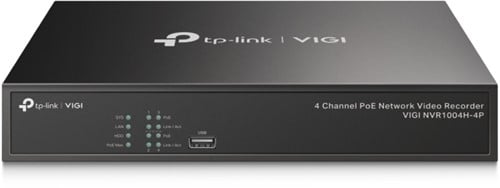

VIGI 4 Channel PoE+ Network Video Recorder

  • 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.
  • Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
  • 4-Channel Simultaneous Playback§: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
  • 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
  • Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
  • 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.
  •

Let op, wordt zonder HDD geleverd!


Documenten

Specificaties

MerkTP-Link
CategorieNVR
EAN Code4897098688748
ArtikelcodeVIGI NVR1004H-4P
VerpakkingStuk(s)

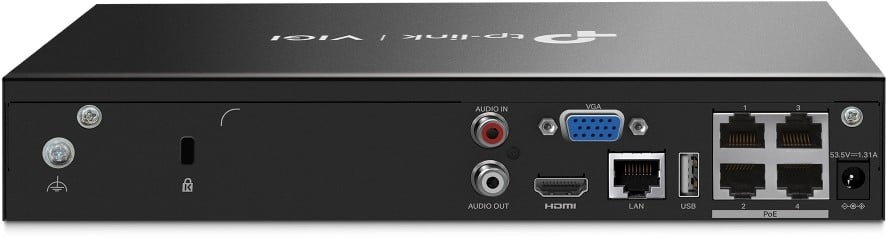

Aantal Ethernet LAN (RJ-45)-poorten1
Kleur van het productZwart
LED-indicatorenJa
Breedte246,2 mm
Diepte148,2 mm
Hoogte45 mm
Bedrijfstemperatuur (T-T)-10 - 55 °C
Stroomverbruik (typisch)4,25 W
WifiNee
Aantal USB 2.0-poorten2
Totaal Power over Ethernet (PoE)-budget53 W
Ondersteunde netwerkprotocollenTCP/IP, DHCP, DNS, NTP, UPnP
Aantal HDMI-poorten1
Spanning53.5 V
Output current1,31 A
Resolutie bij opnamesnelheid1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Ondersteunde videoformatenH.264, H.264+, H.265, H.265+
Ondersteunende oplossingen3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
Maximum resolutie3840 x 2160 Pixels
Videoingangkanalen4 kanalen
Alarmingangkanalen4
Alarmuitgangkanalen1
Video-opname modi720p, 1080p, 2160p
Ingang bandbreedte80 Mbit/s
Uitvoer bandbreedte60 Mbit/s
Maximale opslagcapaciteit10 TB
HDD interfaceSATA
HDMI-uitgangJa
VGA (D-Sub) uitgang ports1
Audio RCA-ingangen1
Audio RCA-uitgangen1
