Barcode

Artikelomschrijving

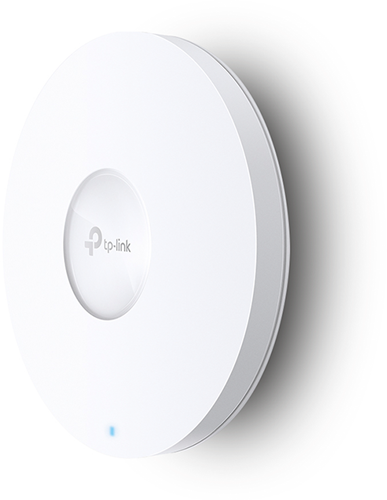

An Enterprise-Level WiFi 6 Access Point Powers Up Your Business



AX5400 Ceiling Mount WiFi 6 Access Point. It is designed for enterprise environments that require ultra-high-performance WiFi. Expanding the TP-Link Omada business product line, this new access point enhances network setups for business. It provides upgrade options for prosumers in need of blazing-fast indoor WiFi connections.








  • Blazing-Fast AX5400 WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.*;
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
  • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.**
  • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.***
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.***
  • 2.5GE Wired Performance: Boosts overall throughput with a 2.5 Gbps Ethernet port.
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.


*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.



**Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.



***Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods



Documenten

Specificaties

MerkTP-Link
CategorieAccess Points
EAN Code4897098687154
Garantie10 jaar
ArtikelcodeEAP670
VerpakkingStuk(s)
snelheid Ethernet-poort10,100,1000,2500 Mbit/s
Aantal gebruikers250 gebruiker(s)
VLAN=ondersteuningNee
Quality of Service (QoS)Ja
BeamFormingJa
Service Set Identifier (SSID) functiesMultiple SSIDs
Access Control List (ACL)Ja
Upgraden van firmware mogelijkJa
Draadloze isolatieJa
Remote Authentication Dial-In User Service (RADIUS)Ja
Stroom1.5 A
Internationale veiligheidscode (IP)IP67
Breedte verpakking302 mm
Diepte verpakking304 mm
Hoogte verpakking82 mm
Gewicht verpakking1,32 g
Code geharmoniseerd systeem (HS)85176990
2,4 GHzJa
5 GHzJa
6 GHz (Wi-Fi 6E of Wi-Fi 7)Nee
Maximale overdrachtssnelheid van gegevens5400 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)574 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)4804 Mbit/s
Frequentieband2.4 - 5 GHz
NetwerkstandaardIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatische kanaalselectieJa
Automatisch scannen kanalenJa
MIMOJa
MIMO-typeMulti User MIMO
Rate limitingJa
BandbreedteaansturingJa
Zendvermogen (CE)<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<30 dBm(5 GHz, band3, EIRP) dBm
Zendvermogen (FCC)<25 dBm (2.4 GHz)
<28 dBm (5 GHz) dBm
Aantal SSID-ondersteuningen16
Web-gebaseerd managementJa
PlaatsingPlafond, Muur
Reset buttonJa
LED-indicatorenJa
CertificeringCE, FCC, RoHS
Soort antenneIntern
Type antennerichtingOmni-directioneel
Antennas quantity6
Antenne versterkingsniveau (max)5 dBi
Breedte243 mm
Diepte243 mm
Hoogte64 mm
Aantal producten inbegrepen1 stuk(s)
