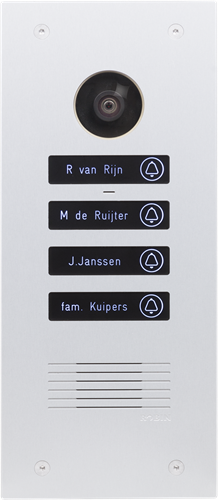

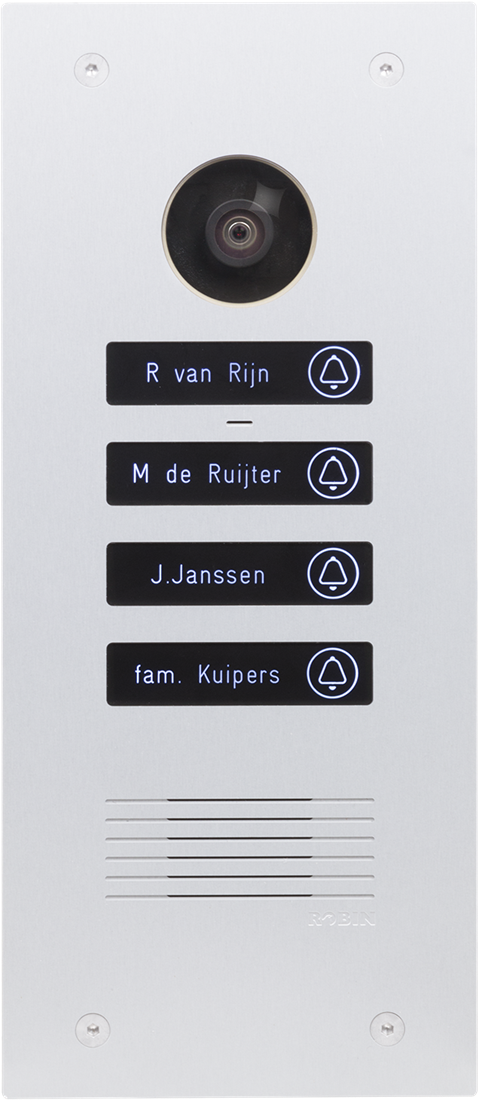

A modern video intercom that makes use of smart IP technology and is available with 1, 2 or 4 piezo pushbuttons or keypad. Operation is simple: press the button with the bell symbol at the door. The intercom emits a bell signal and establishes a connection with the configured telephone or unit.
The Proline SV SIP communicates via the SIP protocol, which enables it to be connected to a large variety of PABX and telephone systems. With an integrated wide-angle, 130-degree, 5 megapixel camera, you are assured of a sharp and clear image, even in poor visual conditions. The engravable pushbuttons and keypad are backlit so that the intercom can also be easily seen in the dark.
Camera: 5 megapixel IP camera with 130-degree wide-angle lens.
Resolution: 640?480 (SIP) up to HD video (720p) with H264/RTSP.
Videostreams: Up to 3 live video streams simultaneously.
Image recording: Video recording via external software or storage on the internal SD card. Picture to Email function (photo sending).
Protocol: Own SIP protocol stack (no internal ATA).
Detection: Possibility to detect motion and ambient noise.
Configuration: Via web interface (more information in the manual). Program up to 3 telephone numbers for each button, which are called in sequence if the preceding telephone number is engaged or not answered.
Compatibility: Tested in combination with a large variety of H.264 video telephones. See compatibility overview.
Relay: Integrated door-open relay. Optionally available: IP Quad web relay.
Power: Power over Ethernet (PoE IEEE 802.3af).
Housing: Anodised aluminium (3 mm) with a brushed finish. Dome made from hardened optical glass with photochromatic properties for protecting the lens. Engravable and backlit keys.
Dimensions: 110mm x 257mm
Guarantee: Standard 24 months, may be optionally extended by an additional 12 or 24 months.
