Mikrotik KNOT IoT Gateway

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
Toevoegen aan favorieten
  • Artikelomschrijving & specificaties
  • Documenten
  • Veel gestelde vragen

Barcode

Artikelomschrijving

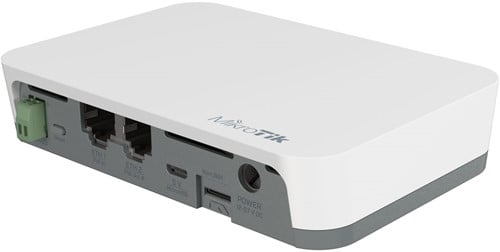

The newest addition to the MikroTik IoT product family – KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.

KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT. You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays. It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!

KNOT features so many protocol support and connectivity options: 2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost! With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format. It has powerful filters for forwarding only relevant packets and ignoring others.

KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.



Module BG77


Cat M1: LTE FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Cat NB2: LTE FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Region: Global
GNSS (Optional): GPS/GLONASS/BeiDou/Galileo/QZSS

Specificaties

MerkMikroTik
CategorieWiFi Routers
EAN Code4752224007131
ArtikelcodeRB924I-2ND-BT5&BG77
VerpakkingStuk(s)
NetwerkstandaardIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Aantal Ethernet LAN (RJ-45)-poorten2
Power over Ethernet (PoE)Ja
Kleur van het productWit
CertificeringCE, FCC, IC, EAC, ROHS
Antenne versterkingsniveau (max)1,5 dBi
Compatibele besturingssystemenRouterOS
Breedte122 mm
Diepte87 mm
Hoogte26 mm
Bedrijfstemperatuur (T-T)-40 - 70 °C
snelheid Ethernet-poort10,100 Mbit/s
Internationale veiligheidscode (IP)IP20
Code geharmoniseerd systeem (HS)85176990
Bekabelingstechnologie10/100Base-T(X)
Stroomverbruik (typisch)18 W
BluetoothJa
Bluetooth-versie5.2
WifiJa
Verzending snelheid300 Mpps
Intern geheugen64 MB
Flash memory16 MB
Wi-Fi-standaarden802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wifi-bandSingle-band (2.4 GHz)
SIM-kaartsleufJa
Wifi-standaardWi-Fi 4 (802.11n)
WLAN gegevensoverdrachtsnelheid (max)300 Mbit/s
ProcessormodelQCA9531
SIM card typeNanoSIM
Type processorJa
Frequentie van processor650 MHz
MontagewijzeDIN-rail
Draadloze verbindingenJa
Ondersteunde WLAN data-overdrachtsnelheden300 Mbit/s
Aantal geïnstalleerde processoren1
Micro-USB 2.0 ports hoeveelheid1
Soort serieële aansluitingRS-485
