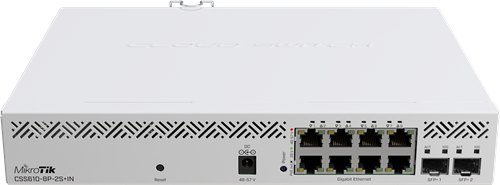

Mikrotik CSS610-8P-2S+IN

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
Toevoegen aan favorieten
  • Artikelomschrijving & specificaties
  • Documenten
  • Veel gestelde vragen

Barcode

Artikelomschrijving

CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.

There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at and passive PoE-out (you only need a single PSU to provide both).

This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.

But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!

Specificaties

MerkMikroTik
CategorieSwitches
ArtikelcodeCSS610-8P-2S+IN
VerpakkingStuk(s)
NetwerkstandaardIEEE 802.3af, IEEE 802.3at
Power over Ethernet (PoE)Ja
Kleur van het productWit
Reset buttonJa
LED-indicatorenJa
CertificeringEAC
Breedte272 mm
Diepte216 mm
Hoogte50 mm
Temperatuur bij opslag-40 - 70 °C
VLAN=ondersteuningJa
MAC adres filteringJa
Stroom2.2 A
Internationale veiligheidscode (IP)IP20
Certificaten van nalevingCE, RoHS
Type Power over Ethernet (PoE) ondersteuntPassive PoE
Naleving van duurzaamheidJa
Meegeleverde kabelsAC
Inclusief besturingssysteemSwitchOS Lite
AC-ingangsspanning100 - 240 V
Vermogensverbruik (max)162 W
Switch typeManaged
Aantal Ethernet poorten8
Type Ethernet-poortenGigabit Ethernet (10/100/1000)
10G supportJa
Broadcast stormbeheerJa
Switchingcapaciteit56 Gbit/s
Rack-montageJa
StroombronAC/DC
Vermogenstoevoer inclusiefJa
AC-ingangsfrequentie50 - 60 Hz
Totaal Power over Ethernet (PoE)-budget140 W
RekbevestigingspakketJa
FanloosJa
DC voltage input48 - 57 V
Hoeveelheid Power over Ethernet (PoE) ports8
Flash memory0,064 MB
ProcessormodelMarvell 88E6193X
Mean time between failures (MTBF)200000 uur
Aantal geïnstalleerde SFP+ modules2
