CRS328-24P-4S+RM

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
Toevoegen aan favorieten
  • Artikelomschrijving & specificaties
  • Documenten
  • Veel gestelde vragen

Barcode

Artikelomschrijving

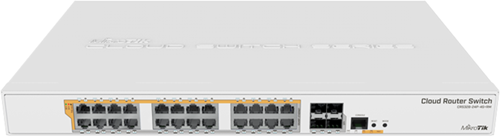

CRS328-24P-4S+RM







CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 "PoE" / Type 2 "PoE+") with auto-sensing. The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).



CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450W (3x150W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30W of power with any power output option you choose.



The device has a "Dual boot" feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.



Documenten

Specificaties

MerkMikroTik
CategorieSwitches
EAN Code4752224002228
Garantie2 jaar
ArtikelcodeCRS328-24P-4S+RM
VerpakkingStuk(s)
NetwerkstandaardIEEE 802.1Q, IEEE 802.3ad
Power over Ethernet (PoE)Ja
Mono-StereoWit
LED-indicatorenJa
Breedte443 mm
Diepte300 mm
Hoogte44 mm
Bedrijfstemperatuur (T-T)-20 - 60 °C
VLAN=ondersteuningJa
Access Control List (ACL)Ja
Code geharmoniseerd systeem (HS)85176990
BeheerprotocollenSNMP
Meegeleverde kabelsAC
AC-ingangsspanning100 - 240 V
Vermogensverbruik (max)44 W
Switch typeManaged
Switch-layerL2/L3
Aantal Ethernet poorten24
Type Ethernet-poortenGigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+4
Console portRJ-45
Port mirroringJa
Broadcast stormbeheerJa
Aantal VLANs4000
MAC-adrestabel16000 entries
Switchingcapaciteit128 Gbit/s
Verzending snelheid95,2 Mpps
Jumbo Frames ondersteuningJa
Jumbo frames10218
IGMP snoopingJa
Rack-montageJa
Vormfactor1U
StroombronAC
Vermogenstoevoer inclusiefJa
VerbindingsaggregatieJa
RekbevestigingspakketJa
Throughput64 Mpps
Intern geheugen512 MB
Flash memory16 MB
Type processorJa
Frequentie van processor800 MHz
Auto-sensingJa
