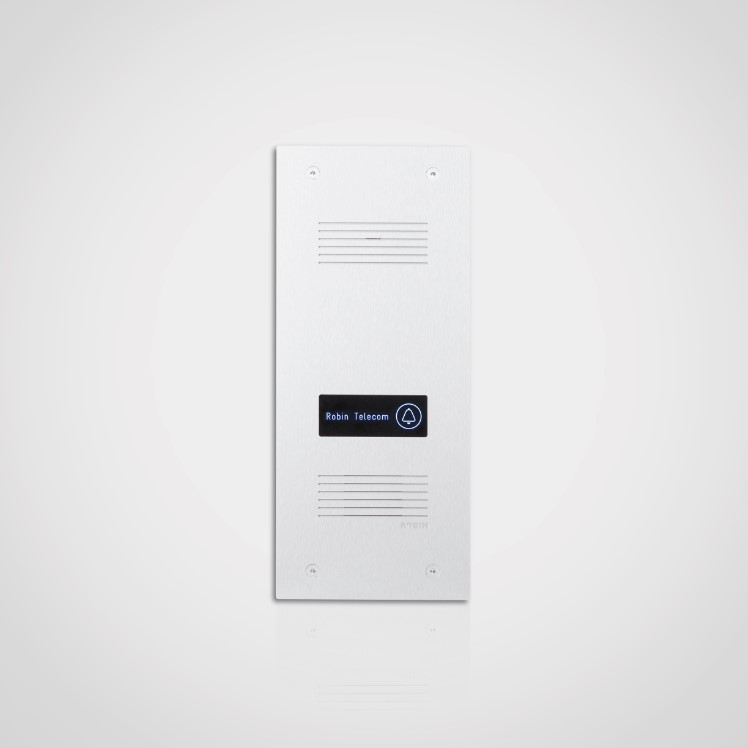

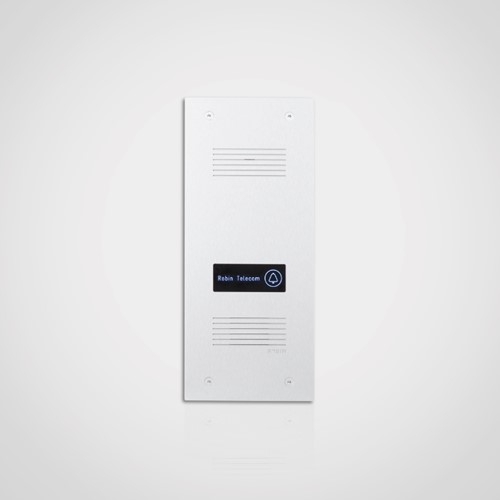

A modern intercom that makes use of smart IP technology and is available with 1, 2 or 4 piezo pushbuttons or keypad. Operation is simple: press the button with the bell symbol at the door. The intercom emits a bell signal and establishes a connection with the configured telephone or unit.
The Proline SIP communicates via the SIP protocol, which enables it to be connected to a large variety of PABX and telephone systems. The engravable pushbuttons and keypad are backlit so that the intercom can also be easily seen in the dark.
Protocol: Own SIP protocol stack (no internal ATA).
Detection: Possibility to detect motion and ambient noise.
Configuration: Via web interface (more information in the manual). Program up to 3 telephone numbers for each button, which are called in sequence if the preceding telephone number is engaged or not answered.
Compatibility: Tested in combination with a large variety of H.264 video telephones. See compatibility overview.
Relay: Integrated door-open relay. Optionally available: IP Quad web relay.
Power: Power over Ethernet (PoE IEEE 802.3af).
Housing: Anodised aluminium (3 mm) with a brushed finish. Engravable and backlit keys.
Dimensions: 110mm x 257mm
Guarantee: Standard 24 months, may be optionally extended by an additional 12 or 24 months.
