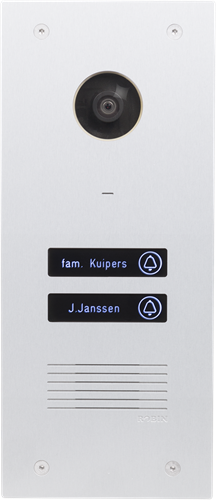

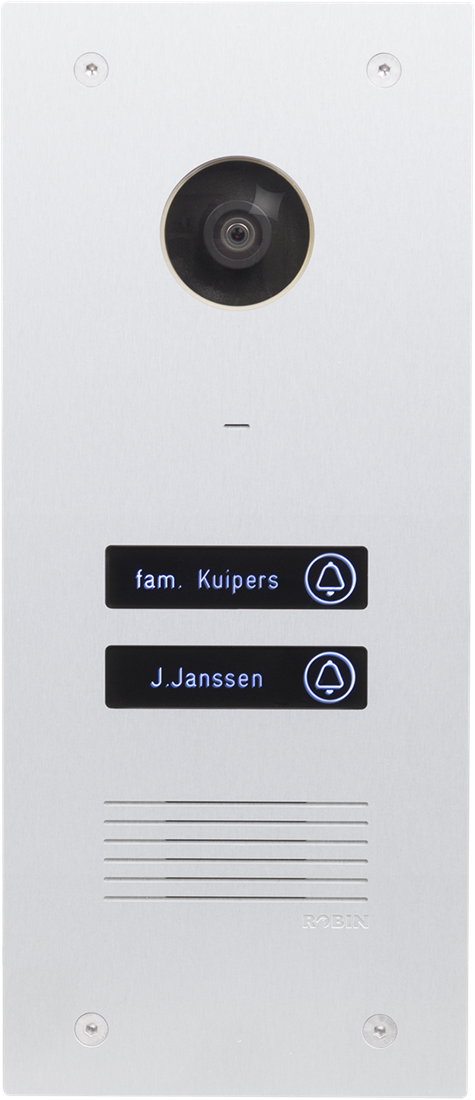

Robin ProLine SIP met camera

A modern video intercom that makes use of smart IP technology and is available with 1, 2 or 4 piezo pushbuttons or keypad. Operation is simple: press the button with the bell symbol at the door. The intercom emits a bell signal and establishes a connection with the configured telephone or unit.

The Proline SV SIP communicates via the SIP protocol, which enables it to be connected to a large variety of PABX and telephone systems. With an integrated wide-angle, 130-degree, 5 megapixel camera, you are assured of a sharp and clear image, even in poor visual conditions. The engravable pushbuttons and keypad are backlit so that the intercom can also be easily seen in the dark.

Camera:   5 megapixel IP camera with 130-degree wide-angle lens.

Resolution:    640?480 (SIP) up to HD video (720p) with H264/RTSP.

Videostreams:    Up to 3 live video streams simultaneously.

Image recording:   Video recording via external software or storage on the internal SD card. Picture to Email function (photo sending).

Protocol:   Own SIP protocol stack (no internal ATA).

Detection:   Possibility to detect motion and ambient noise.

Configuration:   Via web interface (more information in the manual). Program up to 3 telephone numbers for each button, which are called in sequence if the preceding telephone number is engaged or not answered.

Compatibility:   Tested in combination with a large variety of H.264 video telephones. See compatibility overview.

Relay:   Integrated door-open relay. Optionally available: IP Quad web relay.

Power:   Power over Ethernet (PoE IEEE 802.3af).

Housing:   Anodised aluminium (3 mm) with a brushed finish. Dome made from hardened optical glass with photochromatic properties for protecting the lens. Engravable and backlit keys.

Dimensions:   110mm x 257mm

Guarantee:   Standard 24 months, may be optionally extended by an additional 12 or 24 months.
