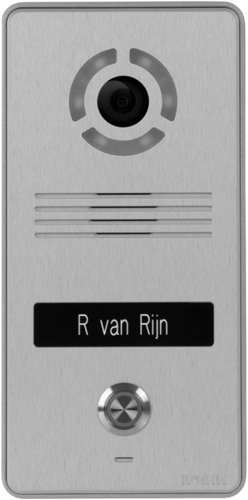

A modern video intercom that makes use of smart IP technology. The intercom emits a bell signal and establishes a connection with the configured telephone or unit.
The SlimLine SIP communicates via the SIP protocol, which enables it to be connected to a large variety of PABX and telephone systems. With an integrated wide-angle, 120-degree, 2 megapixel camera, you are assured of a sharp and clear image, even in poor visual conditions. The pushbuttons are backlit so that the intercom can also be easily seen in the dark.
Part Number |
SlimLine SIP Silver Surface-mount
|
Camera
|
2 megapixel IP camera with 120-degree wide-angle lens.
|
Resolution
|
HD video (720p) with H264/RTSP.
|
Videostreams
|
Up to 3 live video streams simultaneously.
|
Protocol
|
Native SIP protocol stack.
|
Detection |
Motion detection, ambient noise (VOX) detection.
|
Configuration |
Via web interface (more information in the manual).
Programme up to 3 telephone numbers , which are called in sequence if the preceding telephone number is engaged or not answered.
|
Compatibility
|
Tested in combination with a large variety of H.264 video telephones. See compatibility overview.
|
Relay
|
One integrated dry relay, normally openend,normally closed, max 24V/18W. Optionally available: IP-Quad-Webrelay.
|
Power
|
Power over Ethernet (PoE IEEE 802.3af). Max 6 Watt.
|
Housing |
Anodised aluminium (3 mm) with a brushed finish. Hardened glass for protecting the lens.
|
Dimensions
|
170 mm (L) x 85 mm (W) x 31 mm (H)
|
Warranty
|
24 months (carry-in DDP).
|
